| Place of Origin: | HeBei China |
| Brand Name: | QuanHu |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 500 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Special carton and wooden case packing for export |
| Delivery Time: | 5-15work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 400,000 sets per month |
| Product Name: | PP Butterfly Valve | Origin: | Hebei, China |
|---|---|---|---|
| Connection Method: | Flange | Body Material: | PVC/PP/CPVC |
| Liner Material: | FPM Or EPDM | Shaft Material: | 45# Carbon Steel/SS410/SS304/SS316 |
| Drive: | Manual, Low Torque, Labor Saving | ||
| High Light: | Variable Speed PP Butterfly Valve,DIN ANSI PP Butterfly Valve,10 pvc butterfly valve |
||

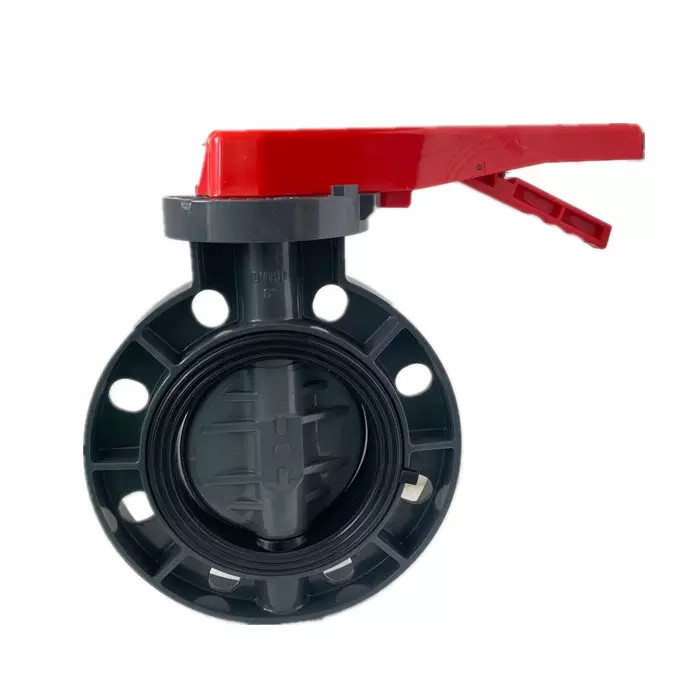

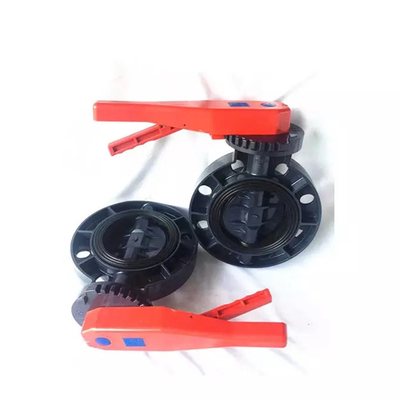

22 years factory wholesale UPVC valve body PP disc manual variable speed butterfly valve
Introduction
The relationship between the opening of the plastic butterfly valve and the flow is basically a linear proportional change. If it is used to control the flow, its flow characteristics are also closely related to the flow resistance of the piping. For example, the diameter and form of the valves installed in the two pipes are all the same, but the loss coefficient of the pipes is different, and the flow rate of the valve will be very different. If the valve is in a state of large throttling, cavitation is prone to occur on the back of the valve plate, which may damage the valve. Generally, it is used at a distance of 15°.
| Product name | Butterfly Valve |
| Connection method | Flange |
| standard | DIN/ANSI/JIS |
| Standard or non-standard | standard |
| Drive | Manual, low torque, labor saving |
| Application | General |
| Custom Support | OEM |
| Liner material | FPM or EPDM |
Features
1. Health indicators conform to national health standards
2. The appearance is compact and beautiful
3. The body is light in weight and easy to install
4. The material is hygienic and non-toxic
5. Wear-resistant, easy to disassemble, easy to maintain
6. Wide temperature range: -40℃ ~120℃
7. Has excellent strength and toughness
8. Excellent chemical corrosion resistance
F&Q
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer, specializing in valves for many years.
Q: How about OEM or ODM?
A: We have an experienced technical team who can design valves according to customer requirements.
Q: How long is your delivery time?
A: Generally, regular products have 7 days in stock, otherwise 20-30 days after deposit. Urgent orders are negotiable.
Q: Do you provide samples?
Answer: Absolutely! But need to provide shipping.
Q: Can I use my own logo on the product?
A: Yes, of course, if your quantity is large, we would like to engrave your logo on the product.
