| Place of Origin: | HeBei China |
| Brand Name: | QuanHu |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 500 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Special carton and wooden case packing for export |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 400,000 sets per month |
| Brand: | Quanhu | Pressure Environment: | Normal Pressure |
|---|---|---|---|
| Drive Mode: | Manual | Accessories Available: | Valve Rod |
| Temperature Environment: | Normal Temperature | Structural Form: | Fixed Type |
| Valve Standard: | American Standard | Valve Function: | Water Inflow |
| High Light: | Plastic Blocking PVC Shut Off Valve,Black PVC Shut Off Valve,water shut off valve for plastic pipe |
||

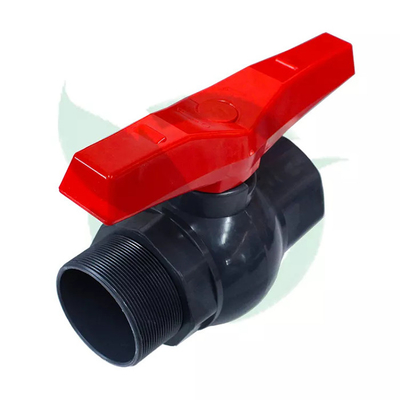

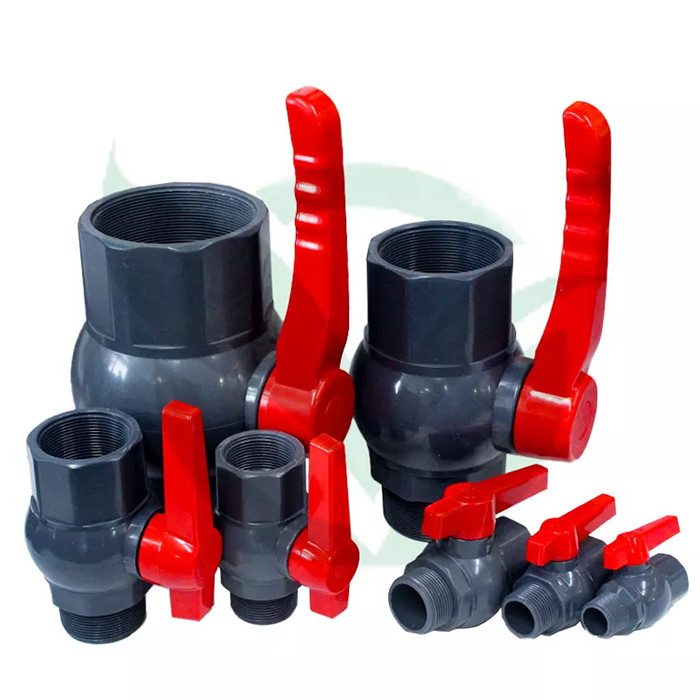

China factory high quality water treatment cpvc pvc plastic blocking ball valve
Describe
When connecting the flanges at both ends to the pipeline, tighten the bolts evenly to prevent the flanges from deforming and causing leakage. Turn the handle clockwise to close, and vice versa to open.
| Brand | QuanHu |
| Origin | Chinese Mainland |
| Model | Ball valve (PVC-U water supply accessory) |
| Operating temperature | 0~55 degrees |
| Color | Grey/Dark Grey |
| Name | Ordinary plain mouth PVC ball valve Straight mouth ball valve |
| Material | UPVC raw material |
| Structure | fixed ball valve |
| Model | Metric outer diameter (mm) | English Outer Diameter (mm) |
| 1/2” | 20 | 22 |
| 3/4" | 25 | 26 |
| 1" | 32 | 34 |
| 1-1/4” | 40 | 42 , 38 |
| 1-1/2" | 50 | 48 |
| 2" | 63 | 60 |
Features
1. It is used for frequent operation, opening and closing quickly and lightly
2. Small fluid resistance
3. Simple structure, relatively small size, light weight, easy maintenance
4. Good sealing performance
5. Not limited by the installation direction, the flow direction of the medium can be arbitrary
F&Q
1. What are your prices?
A: Although we have famous brand products, our prices are very favorable and competitive. Because of our best prices, customers all over the world come to buy our products.
2. How long is your warranty period?
A: Our warranty period is 12 months.
3. Can I get free samples?
A: Yes, we can provide you with free samples, but you need to bear the shipping cost yourself.
4. Can I request to change the packaging and shipping method?
A: Yes, we can change the packaging and shipping method according to your requirements, but you must bear the cost and price difference incurred during this period.
5. Can I request early shipment?
A: It should depend on whether we have enough stock in our warehouse.
6. Can it be specially designed and produced for customers?
A: Of course, we have various professional engineers. We can design and produce special products according to customers' requirements. Such as: special size, special control, OEM, etc.
