| Place of Origin: | HeBei China |
| Brand Name: | QuanHu |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 500 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Special carton and wooden case packing for export |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 400,000 sets per month |
| Product Name: | PVC Shut Off Valve | Type: | Valve |
|---|---|---|---|
| Application: | Construction | Sealing Method: | Soft Sealing |
| Function: | Straight Through Type | Structure: | Ball |
| Eccentricity Requirement: | Non Eccentricity | Accessories Available: | Valve Rod |
| High Light: | Irrigation System PVC Shut Off Valve,Farm Irrigation PVC Shut Off Valve,pvc water shut off valve |
||

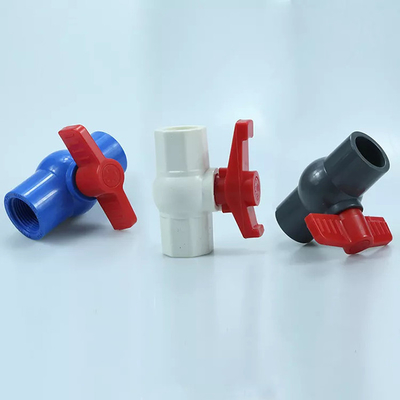

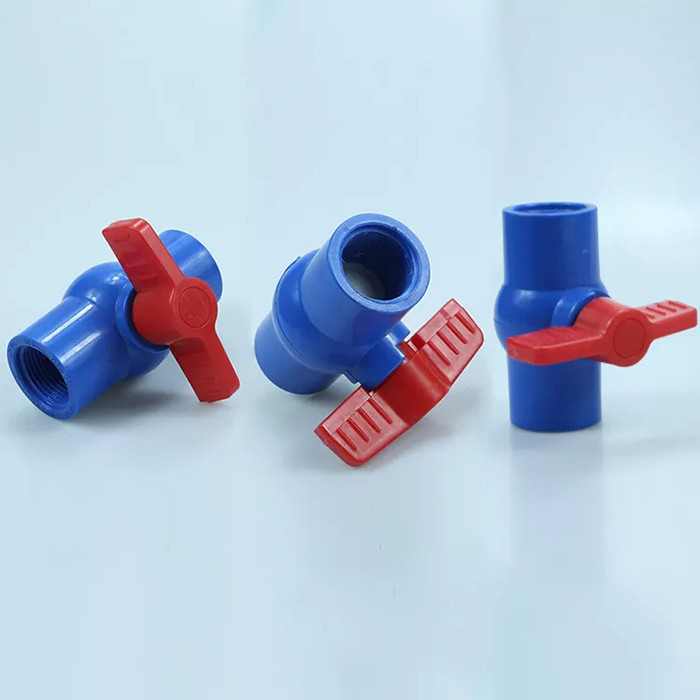

Manufacturer direct sale PVC compact ball valve for farm irrigation system
Describe
According to the needs of the working conditions, different driving devices can be assembled to form ball valves with different control methods. The UPVC plastic ball valve switch part is a ball with a circular channel, that is, the ball core. The ball core rotates with the valve stem to achieve the purpose of opening and closing the channel. , rotate 90 degrees perpendicular to the axis of the channel to do the rotation.
| Brand | QuanHu |
| Origin | Chinese Mainland |
| Model | Ball valve (PVC-U water supply accessory) |
| Operating temperature | 0~55 degrees |
| Color | Grey/Dark Grey |
| Name | Ordinary plain mouth PVC ball valve Straight mouth ball valve |
| Material | UPVC raw material |
| Structure | fixed ball valve |
| Model | Metric outer diameter (mm) | English Outer Diameter (mm) |
| 1/2” | 20 | 22 |
| 3/4" | 25 | 26 |
| 1" | 32 | 34 |
| 1-1/4” | 40 | 42 , 38 |
| 1-1/2" | 50 | 48 |
| 2" | 63 | 60 |
Features
1. It is used for frequent operation, opening and closing quickly and lightly
2. Small fluid resistance
3. Simple structure, relatively small size, light weight, easy maintenance
4. Good sealing performance
5. Not limited by the installation direction, the flow direction of the medium can be arbitrary
F&Q
1. What are your prices?
A: Although we have famous brand products, our prices are very favorable and competitive. Because of our best prices, customers all over the world come to buy our products.
2. How long is your warranty period?
A: Our warranty period is 12 months.
3. Can I get free samples?
A: Yes, we can provide you with free samples, but you need to bear the shipping cost yourself.
4. Can I request to change the packaging and shipping method?
A: Yes, we can change the packaging and shipping method according to your requirements, but you must bear the cost and price difference incurred during this period.
5. Can I request early shipment?
A: It should depend on whether we have enough stock in our warehouse.
6. Can it be specially designed and produced for customers?
A: Of course, we have various professional engineers. We can design and produce special products according to customers' requirements. Such as: special size, special control, OEM, etc.
